CAD exchange is a risk-control process

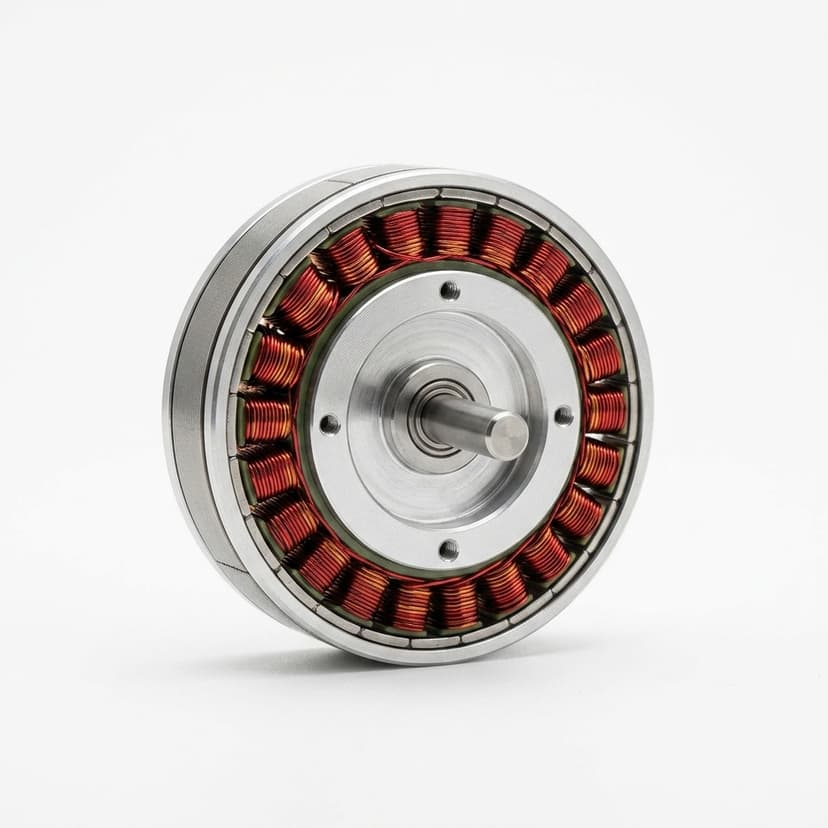

For frameless motors, CAD is not just a sales file. It is the place where retention method, bearing stack, cable exit, encoder space, and thermal contact are checked before money is spent on samples.
Joint mechanical/electrical integration support with CAD exchange and structured validation checkpoints.
For frameless motors, CAD is not just a sales file. It is the place where retention method, bearing stack, cable exit, encoder space, and thermal contact are checked before money is spent on samples.
A sample test without acceptance limits often creates subjective debate. Buyers should define what passes: dimensions, electrical checks, temperature behavior, motion smoothness, and documentation completeness.
When engineering changes happen, every team needs to know which drawing, sample, test result, and quotation are connected. A simple revision log prevents pilot-line mistakes.
| Program Metric | Typical Range | Procurement Value |
|---|---|---|
| Prototype Pass Rate | Project specific | Higher first-pass rate reduces timeline risk and rework cost. |
| Issue Closure Cycle | Tracked per revision loop | Fast closure keeps pilot and launch plans on schedule. |
| Evidence | Why It Matters |
|---|---|
| CAD delivery manifest | Ask for a list of delivered formats, revision, controlled dimensions, and whether files are for concept layout, sample build, or production release. |
| Sample acceptance template | Use a shared pass/fail checklist before sample PO so both sides know which evidence must be returned. |
| Issue log format | Request a simple closure table for interface conflicts, measurement issues, or buyer-requested modifications. |
Use this page as a control framework to separate technical decision, supplier risk, and commercial release. An OEM capability only reduces risk when it becomes a review step, evidence request, and approval responsibility.
Define who can approve winding, cable, sensor, packaging, documentation, or process changes before sample or PO release.
Tie each change to CAD, datasheet, QC record, process photo, test report, or compliance statement according to program risk.
For repeat orders, compare revision, lot, outgoing checklist, and packaging before assuming an earlier approval still applies.
Yes. We support rapid clarification through inquiry channels during integration stages.
Yes. Validation scope can be aligned to your project risk profile and timeline.
