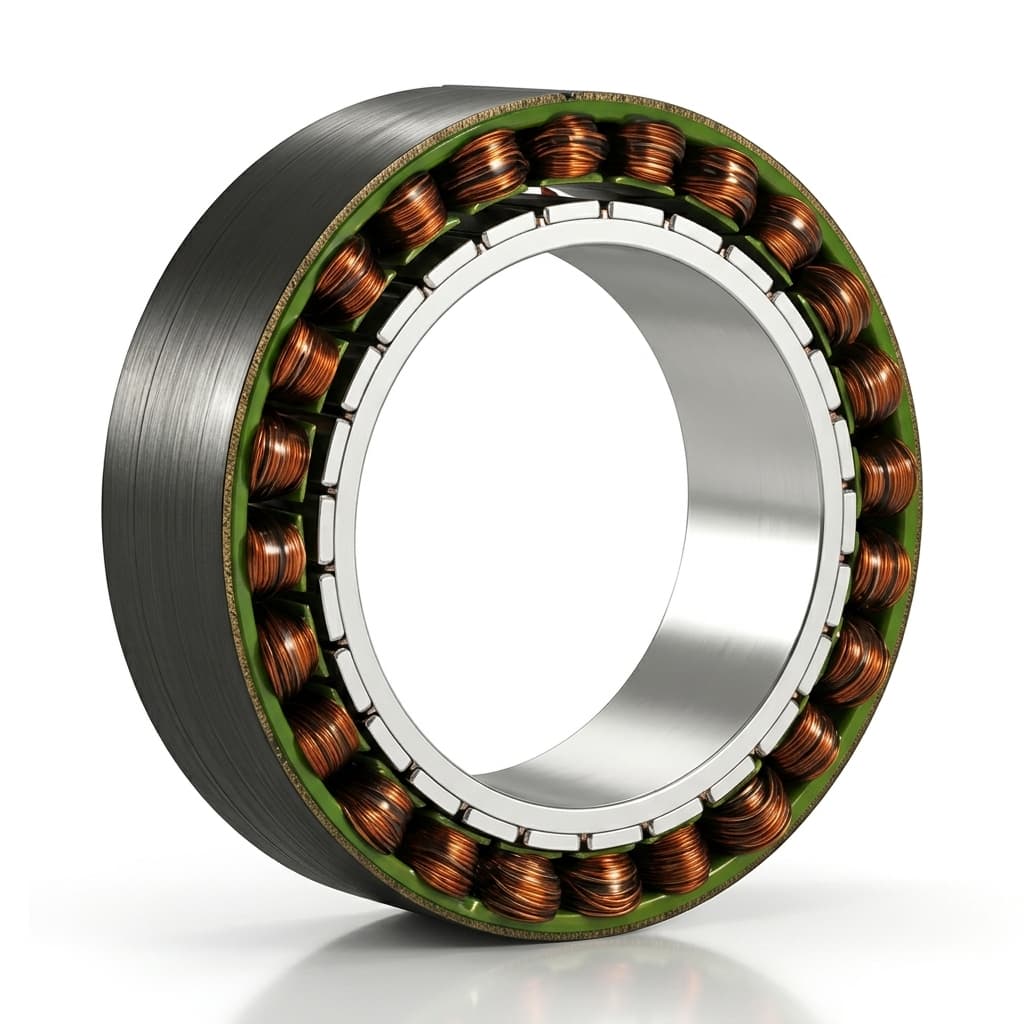

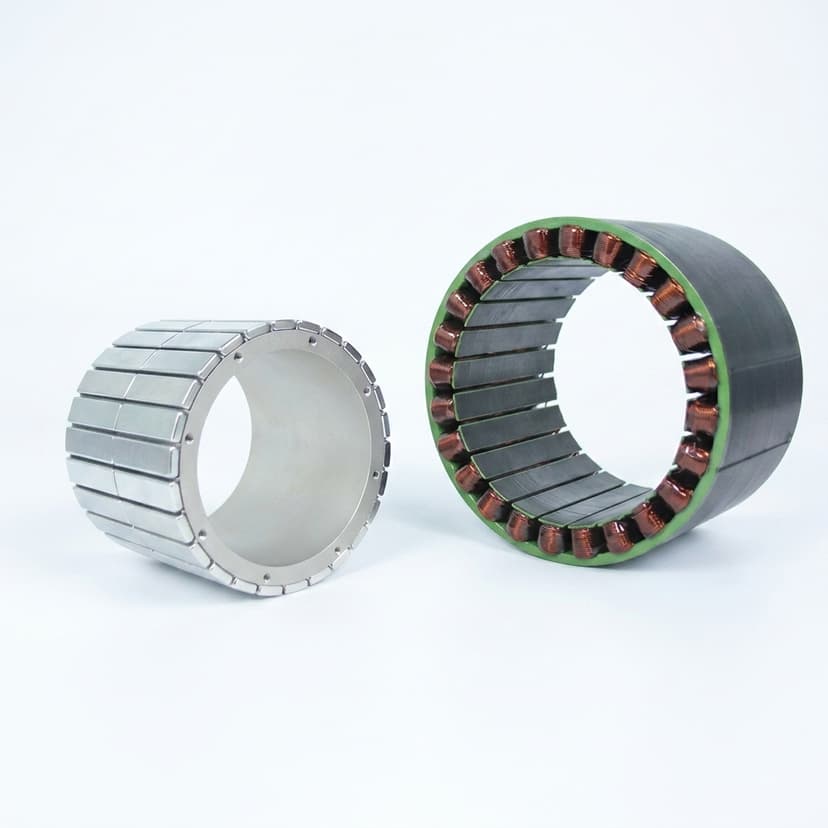

Frameless-servo integration strategy for compact robotic joints requiring high torque density and dynamic response.
Robot joints usually fail from repeated acceleration, braking, and heat accumulation rather than a single static torque number. Buyers should define RMS torque, peak torque duration, payload case, and cycle profile before model selection.

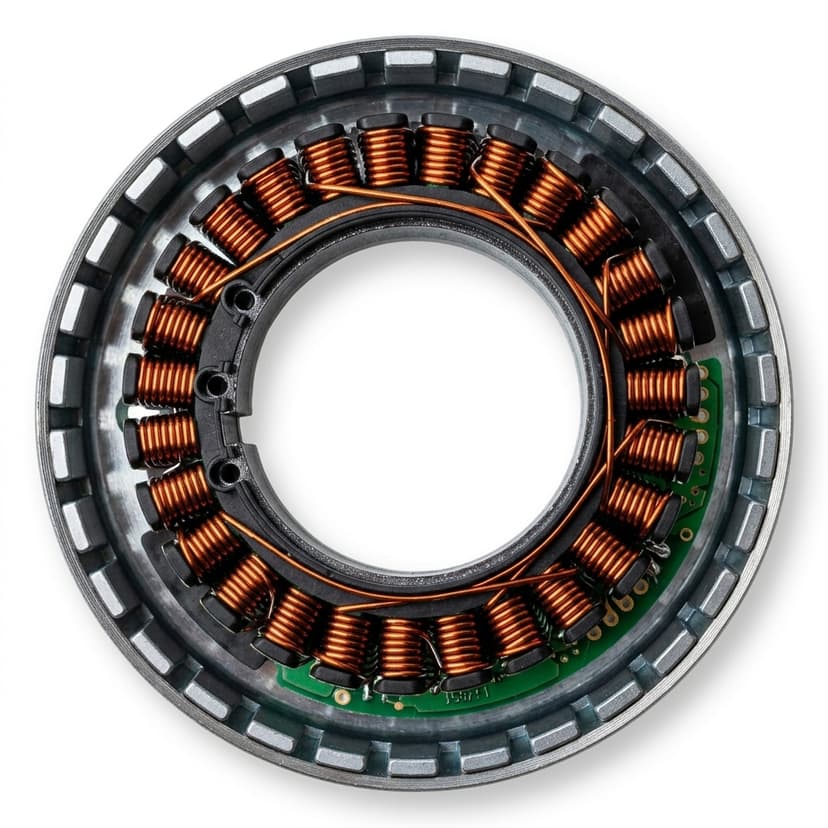

A compact joint needs space for bearings, encoder, brake or fail-safe concept, cabling, and mechanical preload. The motor shortlist should be reviewed inside the full joint stack, not as an isolated ring.
High torque density helps payload, but inertia ratio, encoder resolution, drive bandwidth, and structural stiffness decide whether the joint can settle and track accurately.
| Evaluation Metric | Typical Range | Buyer Relevance |
|---|---|---|
| Torque per Joint Volume | Application-specific optimization | Determines payload capacity under strict joint space limits. |
| Settling / Response Behavior | Controller and inertia dependent | Directly impacts path accuracy and robotic cycle stability. |
| Evidence | Why It Matters |
|---|---|
| CAD package for joint integration | Request stator/rotor geometry, datum references, cable exit notes, and any assembly keep-out details needed by the mechanical team. |
| Torque-speed and thermal assumptions | Ask for curves or baseline data tied to your bus voltage and duty assumptions, plus notes on how continuous torque was bounded. |
| Sample acceptance checklist | Use Back-EMF, resistance, insulation, dimensions, visual inspection, and initial motion checks as the first acceptance evidence before pilot ordering. |
Use these points as a handoff sheet between engineering, procurement, and quality. The goal is not to pick a product label; it is to close what will be measured, who will approve the sample, and what evidence is required before repeat orders.
Turn the application, mechanical limits, voltage, duty cycle, and acceptance criteria into an RFQ brief that every supplier can answer in a comparable way.
Use the validation plan as a pass/fail list. If the sample does not reproduce the real mounting condition, do not approve only from nominal torque.
Connect technical evidence, quality control, and traceability to PO release so revision changes do not disappear in repeat orders.
Yes. We can support pre-RFQ architecture discussion using your target joint data.
Yes. We support sample, pilot, and repeat-order execution planning.
